PRODUCTS FOR

HEALTHCARE SECTOR

HYGIENIC AIR HANDLING UNITS

Advantages Clinicair ATA

The hygienic air handling units developed by ATA offer several advantages that guarantee the perfect adaptation of the product to the characteristics of your project:

– 30 years of experience in the hygienic air treatment
– Hygiene and security
– Compact dimension to reduce the installation constraints
– Selection of the best equipment to optimize energy consumption
– The possibility of maintenance and remote management thanks to a powerful Programmable Controller

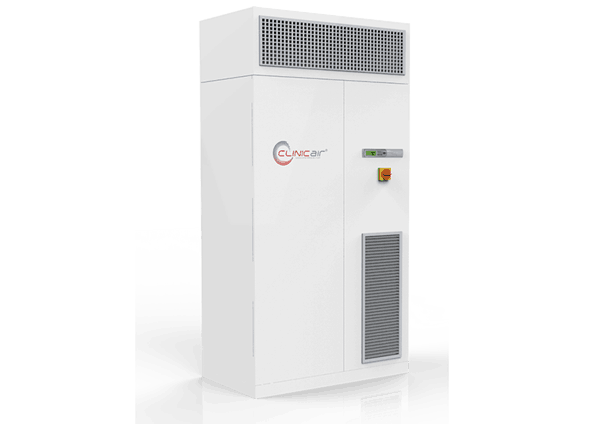

CLINICAIR 1B - Compact and hygienic air handling unit

Functions

  • Temperature control
  • Humidity control
  • Air renewal and air decontamination (filtration)
  • Pressure in the room
  • Air flow speed up to 2500 m3/h.
  • Pressure up to 100 Pa
  • Cooling system: direct expansion.



In ISO 8, Clinicair 1B can decontaminate efficiently a room of 83 m2 (ceiling height 3m).

In ISO 7, Clinicair 1B can decontaminate efficiently a room of 55 m2 (ceiling height 3m).

In ISO 5, Clinicair 1B can decontaminate efficiently a room of 55 m2 (ceiling height 3m).

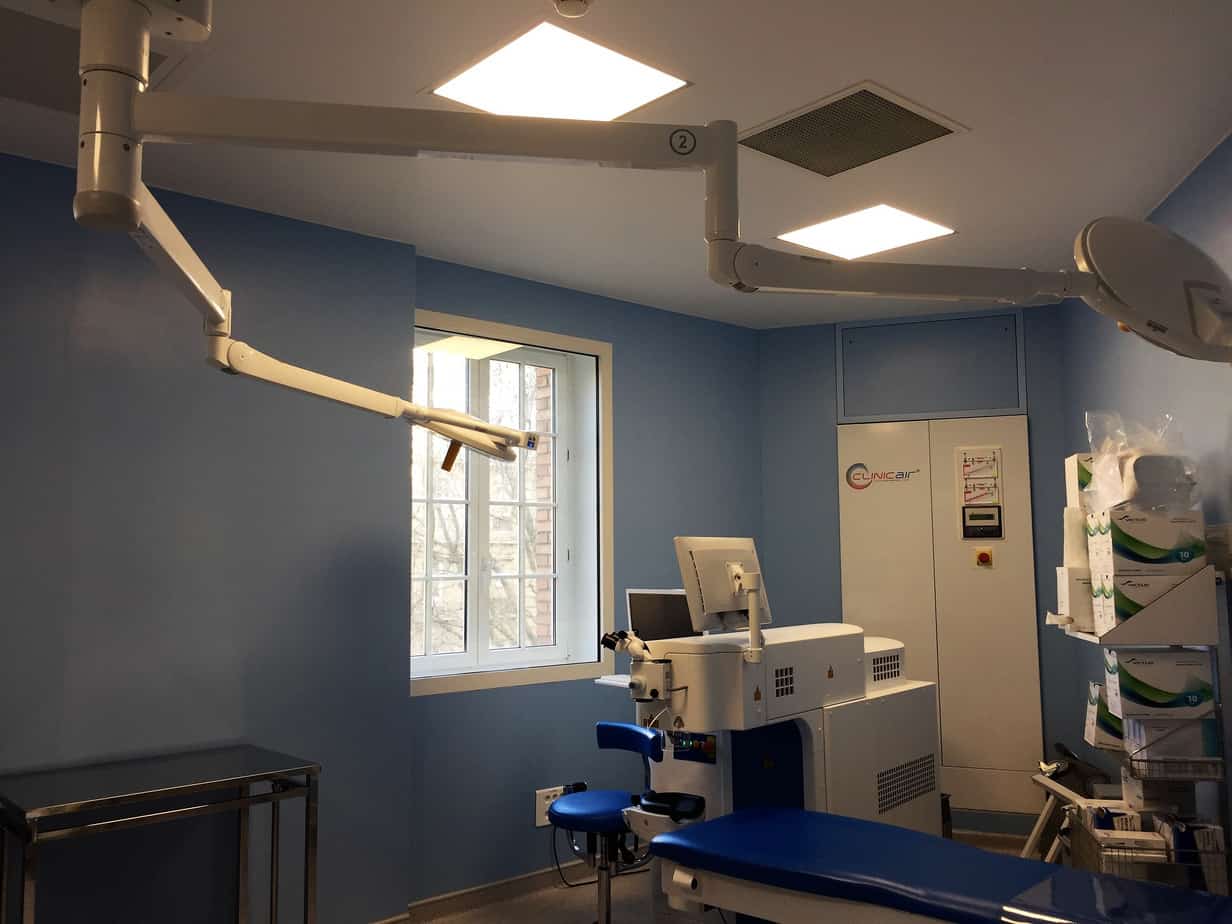

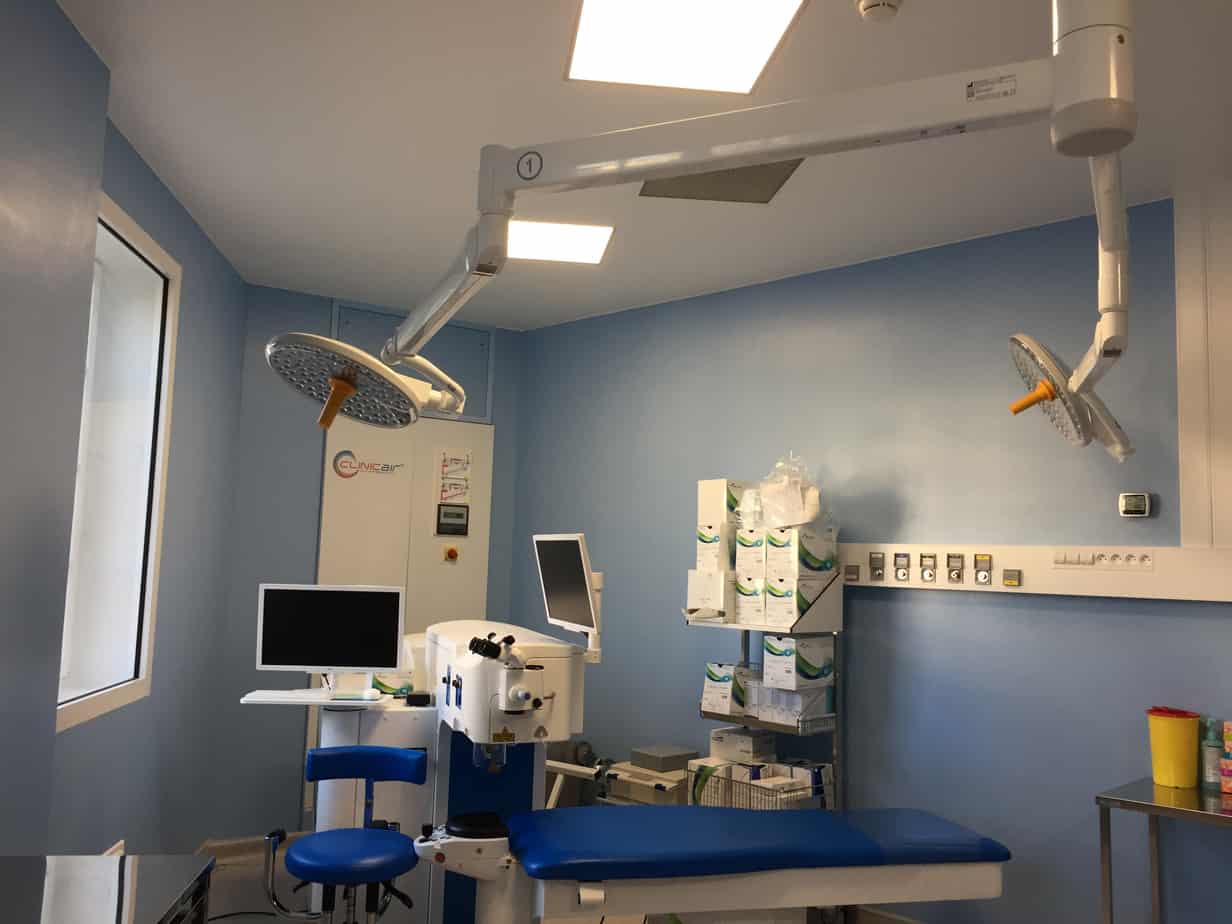

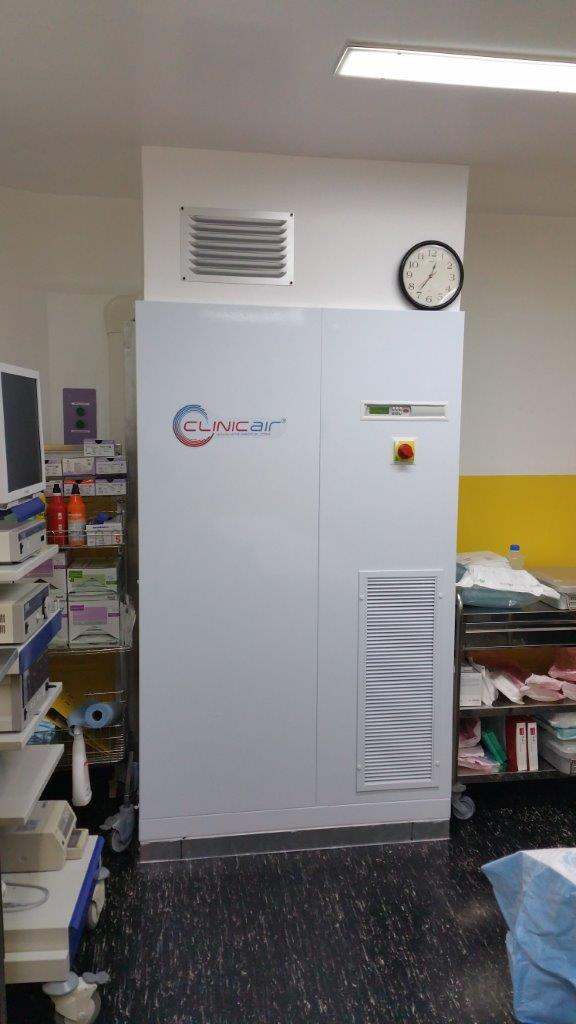

Clinicair 1B can be installed inside or at the nearest to the concerned area.

Five configurations of Clinicair 1B are available :

CLN 1B  + LAF + DPFL Autonomous

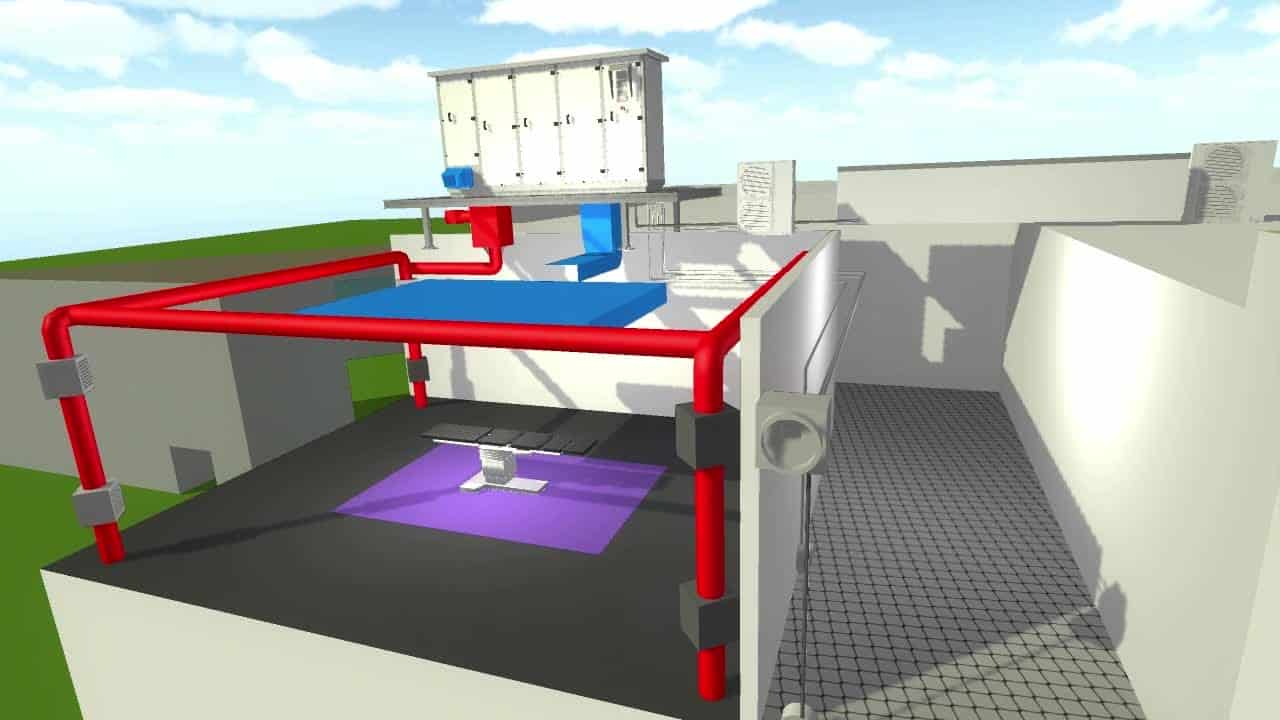

Inside OP Room 3D View 3D View 3D View
Inside technical area 3D View 3D View

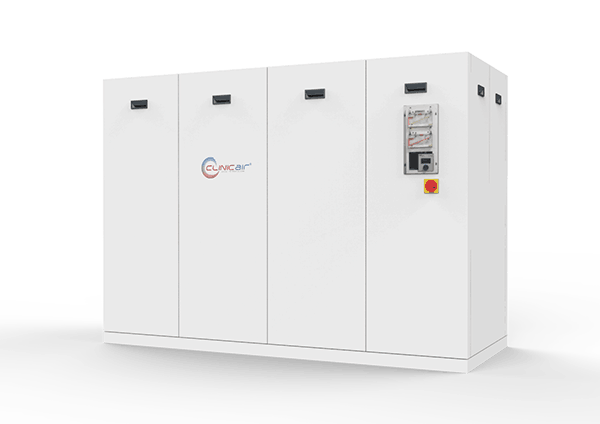

CLINICAIR 3 - Compact and hygienic air handling unit

Functions

  • Temperature control
  • Humidity control
  • Air renewal and air decontamination (filtration)
  • Pressure in the room
  • Air flow speed from 1000 to 20000 m3/h.
  • Pressure up to 1500 Pa
  • Cooling system: direct expansion or chilled water



In ISO 8, Clinicair 3 can decontaminate efficiently a room up to 666 m2 (ceiling height 3m).

In ISO 7, Clinicair 3 can decontaminate efficiently a room up to 444 m2 (ceiling height 3m).

In ISO 5, Clinicair 3 can decontaminate efficiently a room up to 444 m2 (ceiling height 3m).



Clinicair 3 can be installed at the nearest to the concerned area.

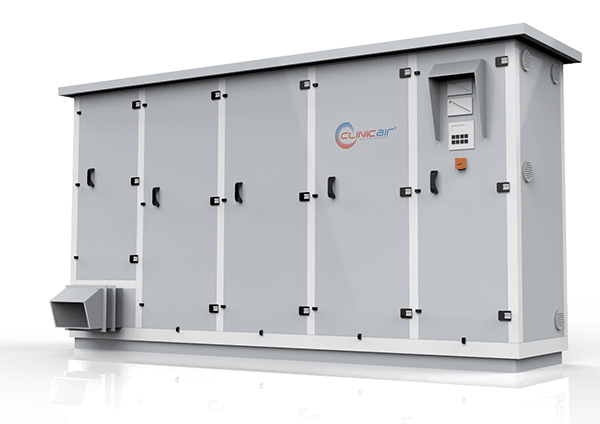

CLINICAIR 4 - Compact and hygienic air handling unit

Functions

  • Temperature control
  • Humidity control
  • Air renewal and air decontamination (filtration)
  • Pressure in the room
  • Air flow speed from 3000 to 8000 m3/h.
  • Pressure up to 500 Pa
  • Cooling system: direct expansion or chilled water.



In ISO 8, Clinicair 4 can decontaminate efficiently a room of 266 m2 (ceiling height 3m).

In ISO 7, Clinicair 4 can decontaminate efficiently a room of 177 m2 (ceiling height 3m).

In ISO 5, Clinicair 4 can decontaminate efficiently a room of 177 m2 (ceiling height 3m).

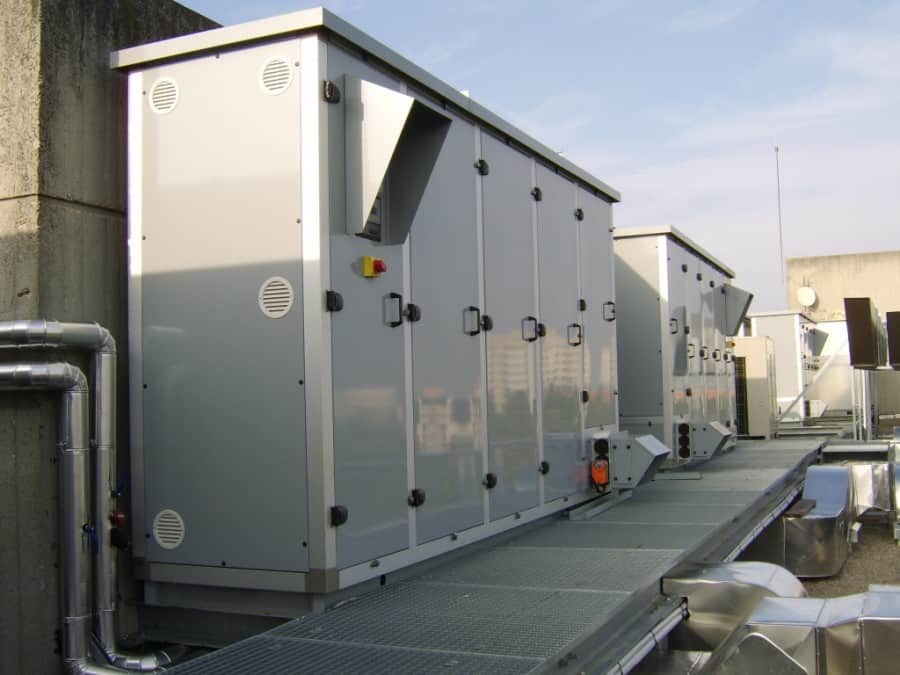

Clinicair 4 can be installed in technical premises or outside the building.
